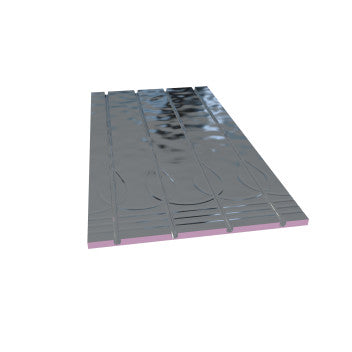

XPS ALUMINIUM FOIL INSULATION PANEL 20MM

High Density lightweight XPS Extruded routed insulation panel with aluminium diffuser. High output & low profile. 1200mm x 600mm, 0.72m2 coverage per panel. Radius bend integral, no end return required, allows greater surface area for heat conductivity. 20mm panel for 16mm pipe at 150mm centers. 100 micron soft tempered aluminium to panel and pipe channel. Suitable for new build and retro-fit, compressive strength at 10% deflection - 300k Pa. Thermal conductivity - 0.033k. 100% recyclable, raw material manufactured in accordance     with BSEN13164, Fire class according to EN13501-01
